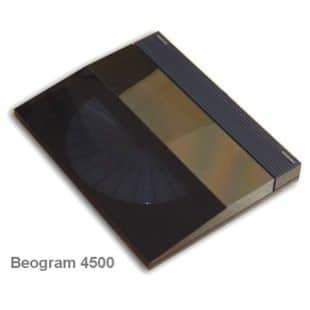

BeoGram 4500

BeoGram 4500

In building the Beogram 4500 turntable, Bang & Olufsen applied all its classic principles to ensure reproduction as close to perfection as possible. The electronically-controlled tangential arm played each record exactly as it was recorded. And there were built-in systems that helped prevent vibrations reaching the cartridge or turntable. Beogram 4500 employed a finer, ultra-light MMC2 cartridge […]

Overview

In building the Beogram 4500 turntable, Bang & Olufsen applied all its classic principles to ensure reproduction as close to perfection as possible.

The electronically-controlled tangential arm played each record exactly as it was recorded. And there were built-in systems that helped prevent vibrations reaching the cartridge or turntable. Beogram 4500 employed a finer, ultra-light MMC2 cartridge that combined distinguished sound reproduction with maximum protection for your records.

Beogram 4500 could be used as part of the Beosystem 4500 hi-fi system, and – having an inbuilt RIAA pre-amplifier can be plugged straight into the AUX port of your modern B&O equipment and enjoyed with the minimum of fuss!

Product Details

Type Number:5951,5955,5954,5953
Release Date:1988, 1989, 1990, 1991
Designer:Jacob Jensen
Colour / Finish:Aluminium and Black
BeoLink:DataLink

Product Specification

Wow and flutter, DIN < +/- 0.06 %
Rumble DIN weighted > 80 dB
Rumble DIN unweighted > 55 dB

Speeds: 33 – 45 rpm
Speed deviation: < +/- 0.2 %
Power supply:
5951: 220V
5953: 120V
5954: 100V
5955: 240V
Power consumption: < 10 W
Dimensions W x H x D: 42 x 7.5 x 32.5 cm
Weight 5.3 kg

Downloads

    Type

Language

Language

    Type

Setup Guide

EN

EN

BeoGram 4500 Setup Guide

Service Manual

EN

5951, 5953, 5954, 5955

BeoGram 4500 Service Manual


Frequently Asked Questions

No FAQs available.
