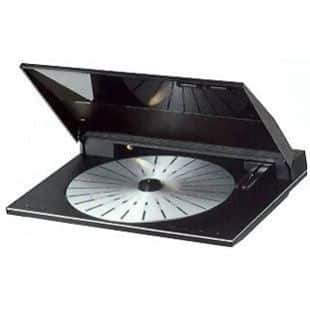

Another incarnation of the lightweight B&O tangential turntable, this one was designed to match the Beomaster 3500 with it’s ‘battleship grey’ trim on the dust cover and was supplied with an MMC4 cartridge. A RIAA was built into this model.
Wow and flutter, DIN < +/- 0.06 %
Rumble DIN weighted > 80 dB
Rumble DIN unweighted > 55 dB
Speeds
33 – 45 rpm.
Speed deviation < +/- 0.2 %
Power supply
5976: 220V
5977: 120V
5978: 100V
Power consumption < 10 watts
Dimensions W x H x D 42 x 7.5 x 32.5 cm
Weight 5.3 kg
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | Type | |
Service Manual | EN | 5976, 5977, 5978, 5979 | BeoGram 3500 Service Manual |
