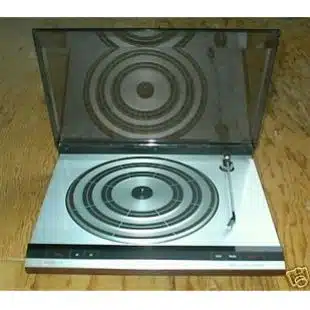

BeoGram 3404

Beogram 3404 was designed specifically for the US market and was produced between 1980 and 1982. It incorporated an MMC 20E diamond stylus.

Mounting Options

Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.

»Wall Mounting Bracket

Wall Bracket / Shelf for BeoGram

A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.

BeoGram 3404 Product Details

Type Numbers

5747 (USA) (1980 – Nov 1982)

Designer

Manufactured

1980 – 1982

Colour Options

Rosewood, Teak

BeoGram 3404 Product Specification

Speeds / control range 33 – 45 rpm /> +/- 3%
Wow and flutter, DIN < +/- 0.06 %
Rumble weighted > 65 dB
Rumble unweighted > 45 dB
Motor / drive system Servo controlled DC / belt
Tonearm Radial, low mass

Bearings Knife vertical, ball horizontal
Tracking force 0 – 20 mN / 2 g
Antiskating Integrated in tonearm system

Cartridge: MMC 20 EN
Recommended tracking force 12 mN / 1.2 g

Power supply / cons: 120 V /8 W
Dimensions WxHxD / Weight: 44.5 x 8.9 x 22.5cm / 6.5 kg

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

    Type

Language

    Type

Service Manual

EN

BeoGram 3404 Service Manual
