BeoGram 3000 (1985)

BeoGram 3000 (1985)

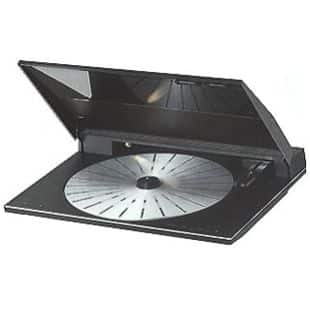

Beogram 3000 was a specially designed tangential record deck with a lightweight tone arm featuring the patented suspension system – Optimum Pivot Point – which prevented internal vibrations from interfering with sound reproductions. Beogram 3000 was a specially designed tangential record deck with a lightweight tone arm featuring the patented suspension system – Optimum Pivot […]

Overview

Beogram 3000 was a specially designed tangential record deck with a lightweight tone arm featuring the patented suspension system – Optimum Pivot Point – which prevented internal vibrations from interfering with sound reproductions.

Beogram 3000 was a specially designed tangential record deck with a lightweight tone arm featuring the patented suspension system – Optimum Pivot Point – which prevented internal vibrations from interfering with sound reproductions.

Beogram 3000 had anย MMC 4ย pick up for optimum sound and minimal record wear. A record sensor automatically record size and with it, the correct speed. The platter reduces static electricity and thereby dust in the grooves, and the pendulum suspension made Beogram 3000 ‘danceproof’. The search system worked both forwards and backwards and the new Active Light system was all automatic, giving you light when you needed it, for searching and changing your records etc.. A repeat function allowed you to play the same record up to 7 times in a row.

Beogram 3000 was designed to be used withinย Beosystem 3000. Beogram 3000 does not have a built in RIAA amplifier and relies on this being in the receiver used with it.ย Beomaster 3000ย – which this deck was designed to work with – has the RIAA built in as do almost every receiver before this time, including theย Beomaster 8000. Later equipment such as theย Beomaster 7000ย andย Beomaster 3500ย andย Beomaster 4500ย transferred the RIAA to the record player as this allowed a longer cable to be fitted to the record player and gave better siting options.

Product Details

Type Number:5901,5903,5905
Release Date:1985, 1986, 1987
Designer:Jacob Jensen
Colour / Finish:Grey and Black
Cartridge Type:MMC4

Product Specification

Speeds: 33 - 45 rpm
Speed deviation: < +/- 0.2

Wow and flutter, DIN 80 dB
Rumble DIN unweighted > 55 dB

Power supply:
5901: 220-240 V
5903: 120 V
5904: 110 V
5905: 240 V
Power consumption: < 10 W
Dimensions: W x H x D 42 x 7.5 x 32.5cm
Weight 5.3 kg

Link compatibility: Data Link

Downloads

    Type

Language

Type

    Type

User Guide

EN


BeoGram 3000 User Guide

User Manual

EN


BeoGram 3000 User Guide

User Manual

EN


BeoGram 3000 User Guide

Service Manual Thorens

Multi

Thorens

BeoGram 3000

Service Manual

Service Manual

Multi

5237, 5228

BeoGram 3000

Service Manual

Service Manual

EN

5237, 5228


BeoGram 3000

Service Manual

Service Manual

EN

5901, 5903, 5904, 5905


BeoGram 3000

Service Manual

Frequently Asked Questions

No FAQs available.
