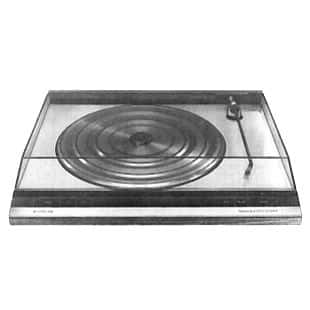

BeoGram 2404

BeoGram 2404

An updated 2402 but with the revised lightweight arm designed to take the MMC5 cartridge. Rather an afterthought, the 2404 was designed to work with the Beomaster 2400-2 and was fitted with the 7 pin DIN plug to allow control by remote. This was not compatible with Datalink. The last UK model of this design […]

Overview

An updated 2402 but with the revised lightweight arm designed to take the MMC5 cartridge.

Rather an afterthought, the 2404 was designed to work with the Beomaster 2400-2 and was fitted with the 7 pin DIN plug to allow control by remote. This was not compatible with Datalink. The last UK model of this design and interesting simply because it had the new cartridge but the old remote control software unlike the Beogram 6000 which boasted the new software and old cartridge.

Product Details

Type Number:5761,5763,5764,5765
Release Date:1980, 1981, 1982, 1983
Designer:Jacob Jensen
Colour / Finish:Oak, Rosewood, Teak, White
Cartridge Type:MMC5

Product Specification

Speeds :33 – 45 rpm.
Speed deviation +/- 3 %
MMC 5 cartridge
Recommended tracking force 15 mN /1.5g
Wow and flutter DIN 65 dB
Rumble DIN unweighted > 45 dB
Power consumption < 10 watts
Dimensions: 44.5 x 8.9 x 36.8cm / Weight 6.5 kg

Downloads

    Type

Language

    Type

User Guide

EN

BeoGram 2404 User Guide
