To play records on either model it was necessary to simply press START and let the automatic system do the rest. As an additional safeguard, all functions could be operated with the protective lid closed. The electronic servo drive system kept turntable speed constant and correct, even during fluctuations in the mains supply. Careful arm geometry ensured that tracking angle was kept well below the level where it could affect the quality of the reproduced sound.
Bias effect was compensated automatically and needed no adjustment. The extreme lightness of the arm, together with the highly polished nude elliptical diamond carried by the MMC 20EN pickup in the 2400, resulted in an unusually low Effective Tip Mass (ETM). This means that your records would suffer very little wear, even after continual playing. Neither would they be damaged if the stylus was accidentally skidded across the surface.

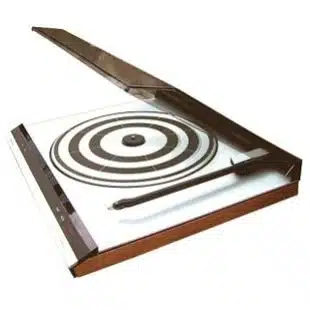

Beogram 2400 could be made up as part of the Beosystem 2400 when linked together with other compatible Bang & Olufsen products.
Bang & Olufsen’s preferred supplier for brackets and stands, STBbrackets, have made a wall mount solution as a general option for Bang & Olufsen Turntables. Distributed throughout the World by the Bang & Olufsen store network, the STB option adds to the diversity of mounting options and positions available.
»Wall Mounting Bracket
Wall Bracket / Shelf for BeoGram
A universal shelf that will support all Bang & Olufsen turntables from the past 30 years. Including three cable entry points to allow you to bring cables from below the shelf or through the wall.
Speeds 33 – 45 rpm
Speeds control range > +/- 3 %
Wow and flutter < 0.06 %
Rumble weighted > 65 dB
Rumble, unweighted > 45 dB
Drive system Flat Belt
Motor Servo controlled DC
Power supply 220 (110) V
Power consumption 8 W
Dimensions W x H x D 44 x 8.5 x 37cm
Weight 6.5 kg
Stylus Elliptical diamond
Pick-up MMC 20 EN
Recommended tracking force 12 mN / 1.2 g
Frequency range 20 – 20,000 Hz +/- 2 dB
Stylus Elliptical naked diamond
RIAA amplifier: built-in
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | |
Service Manual | EN | BeoGram 2400 Service Manaul |
