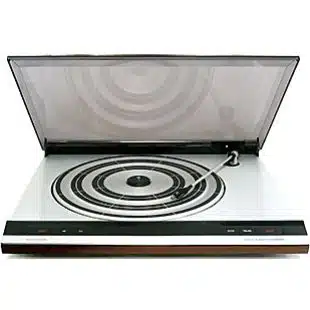

BeoGram 2202
Beogram 2202 and Beogram 2402 replaced models 2200 and 2400 and were eventually replaced by Beogram 2404 (looking the same externally as the former units) in 1983. To play records on the fully-automatic Beogram 2202/2402 decks, it was necessary to simply press “start” and let the integrated systems do the rest. As an additional safeguard, all functions could be operated […]
Overview
Beogram 2202 and Beogram 2402 replaced models 2200 and 2400 and were eventually replaced by Beogram 2404 (looking the same externally as the former units) in 1983.
To play records on the fully-automatic Beogram 2202/2402 decks, it was necessary to simply press “start” and let the integrated systems do the rest. As an additional safeguard, all functions could be operated with the protective dust lid closed.
Thanks to the fine polish of their elliptical diamonds, and the low mass of the arm, these Beograms got the very best from your records without inflicting any significant wear. Careful arm geometry ensured that tracking error was kept well below the level where it could affect sound quality. Skating effect was compensated automatically. Beogram 2202 was fitted with an MMC 20E pickup, while Beogram 2402 has an MMC 20EN. When coupled to the Beomaster 2400-2 FM stereo receiver, Beogram 2402 could be operated by remote control.
Beogram 2202 / 2402 could be made up as part of the Beosystem 1900 or Beosystem 2400, when linked together with other compatible Bang & Olufsen products.
Product Details
Software
No software information available.
Product Specification
Pickup Cartridge: MMC 20E
Recommended tracking force: 15mN/1,5g
Speeds/control range: 33 – 45rpm/+/-3%
Wow & flutter: 65dB
Rumble unweighted: >45dB
Motor/drive system: Servo-controlled DC/belt
Power supply (50-60 Hz) consumption: 180 – 265 (110)V/8W
Dimensions: 44 x 8,5 x 37cm/6,5kg
Downloads
Type | Language | Type | |
User Guide | EN | BeoGram 2202 User Guide |
