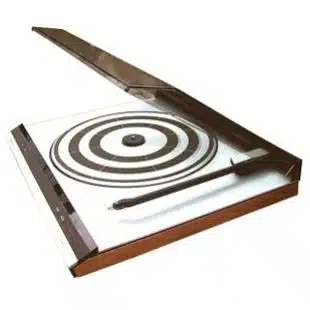

BeoGram 2200

BeoGram 2200

Beogram 2200/2400 were identical except that, when coupled to the Beomaster 2400, Beogram 2400 could also be operated by remote control. To play records on either model it was necessary to simply press START and let the automatic system do the rest. As an additional safeguard, all functions could be operated with the protective lid closed. […]

Overview

Beogram 2200/2400 were identical except that, when coupled to the Beomaster 2400, Beogram 2400 could also be operated by remote control.

To play records on either model it was necessary to simply press START and let the automatic system do the rest. As an additional safeguard, all functions could be operated with the protective lid closed. The electronic servo drive system kept turntable speed constant and correct, even during fluctuations in the mains supply. Careful arm geometry ensured that tracking angle was kept well below the level where it could affect the quality of the reproduced sound.

Bias effect was compensated automatically and needed no adjustment. The extreme lightness of the arm, together with the highly polished elliptical diamond carried by the MMC 20E pickup in the 2200, resulted in an unusually low Effective Tip Mass (ETM). This means that your records would suffer very little wear, even after continual playing. Neither would they be damaged if the stylus was accidentally skidded across the surface.

Beogram 2200/2400 could be made up as part of the Beosystem 2200 when linked together with other compatible Bang & Olufsen products.

Product Details

Type Number:5721
Release Date:1978, 1979, 1980
Designer:Jacob Jensen
Colour / Finish:Oak, Rosewood, Teak, White
Cartridge Type:MMC20E

Product Specification

Speeds 33 – 45 rpm
Speeds control range > +/- 3 %
Wow and flutter 65 dB
Rumble, unweighted > 45 dB
Drive system Flat Belt
Motor Servo controlled DC
Power supply 220 (110) V
Power consumption 8 W
Dimensions W x H x D 44 x 8.5 x 37cm
Weight 6.5 kg
Pick-up MMC 20 E
Recommended tracking force 15 mN / 1.5 g
Frequency range 20 – 20,000 Hz +/- 2.5 dB
Stylus: elliptical diamond
Pick-up MMC 20 EN
Recommended tracking force 12 mN / 1.2 g
Frequency range 20 – 20,000 Hz +/- 2 dB
Stylus: elliptical naked diamond

Downloads

    Type

Language

    Type

Service Manual

EN

BeoGram 2200 Service Manual
