BeoGram 1800 (1968)

BeoGram 1800 (1968)

This was a rare and interesting model. It boasted a new arm and motor compared to the Beogram 1000 but retained quite a lot of the design and the uninspired rubber mat. It also had a most unusual dust cover with a metal surround with only the top panel being transparent. This design was to […]

Overview

This was a rare and interesting model. It boasted a new arm and motor compared to the Beogram 1000 but retained quite a lot of the design and the uninspired rubber mat.

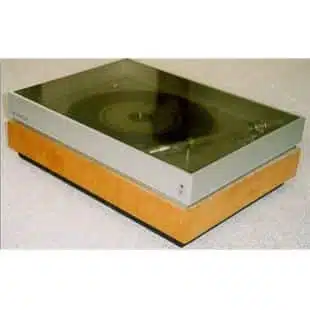

It also had a most unusual dust cover with a metal surround with only the top panel being transparent. This design was to be seen also in the prototypeย Beogram 6000ย but not in any production model.

Product Details

Type Number:5213
Release Date:1968, 1969, 1970, 1971, 1972
Designer:Jacob Jensen
Colour / Finish:Rosewood, Teak, White
Cartridge Type:SP10A

Product Specification

Speeds: 45 and 33,3
Rumble: better than 55 dB (DIN B.)
Wow and flutter: +/- 0.15 peak value

Amplifier:
Max. 3.5 V RMS = 10 V pp (corresponding to 58 cm/sec./1000 Hz)

Pickup:
SP 10 Aย type 5425
Stylus pressure 1 g (2 g max)
Output:
5 mV - 1000 Hz / 47 k ohms
Voltage:
110 - 220 volts AC
Power consumption 22 W
Dimensions W x H x D: 43.8 x 13.2 x 32.3 cm
Weight 6.5 kg

Downloads

    Type

Language

Date

Type

    Type

Brochure

EN

BeoGram 1800 Brochure

User Guide

EN

BeoGram 1800 User Guide

Service Manual

EN

12-82


5811, 5813, 5814, 5815


BeoGram 1800 Service Manual


Service Manual

Multi

07-70

5213

BeoGram 1800 Service Manual

Service Manual

EN

08-83

581x

BeoGram 1800 Service Manual

Supplement Service Manual

EN

10-84



BeoGram 1800 Supplement Service Manual

Frequently Asked Questions

No FAQs available.
