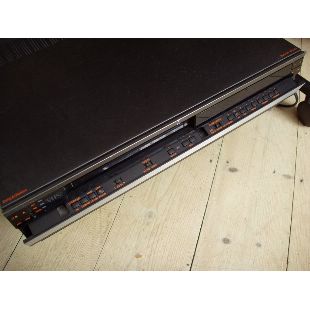

BeoCord VHS80

Beocord VHS 80 was Bang & Olufsen’s entry into the VHS arena. Both Beocord VHS 90 and VHS 80 had stereo sound circuitry with Dolby B Noise Reduction. So when combined with a stereo Beovision they ensured the fullest enjoyment from stereo videotapes. You could also record stereo TV/FM Simulcasts if you used a stereo Beovision model.

One of the many plus points for owning a Bang & Olufsen VHS recorder from this period meant that for the first time, you could operate both the Beocord and the Beovision using the same remote Terminal. Whichever Beovision you chose, whether mono or stereo, Beocords VHS 80 or 90 would have been an ideal match for it. One touch on the TV’s remote Terminal allowed you to play a videotape, make recordings, fast wind or rewind the tape, scan the tape in either direction or freeze a single frame on-screen. If you wished to combine a Beocord VHS 80 or VHS 90 with a non-Bang & Olufsen TV, the remote Video Terminal could be purchased separately to provide chairside control of all primary playing and recording functions.

Beocord VHS 90 offered the best of both worlds – a high quality stereo sound recorder that, when connected to a hi-fi system, achieved performance characteristics that were close of compact discs; and a video recorder that combined superb picture quality with true hi-fi sound. When used as an audio recorder, up to 8 hours of music could be stored on one VHS tape and replayed non-stop. For hi-fi video recording, 4 hours was the maximum. With Beocord VHS 90, you could instruct the automatic timer to record up to five different programmes up to 14 days ahead. A repeat button enabled you to record the same show at a specific time every day of the week.

Unlike most most dual-purpose machines the Beocord VHS 90 records two versions of video track simultaneously: a hi-fi stereo track for replay on the same machine and an ‘ordinary’ stereo track which meant that your cassettes could be replayed on a non-hi-fi stereo video recorder.

Finish: metal grey

Beocord VHS 80 also had stereo sound circuitry for video recording and playback. In fact, it offered the same video facilities as Beocord VHS 90, including an identical 39 channel search-and-store tuner and 5 programme/14 day timer.

Picture quality was of equally high standard too, but Beocord VHS 80 did not offer audio-only recording or hi-fi sound characteristics. However, it did incorporate a Dolby B Noise Reduction Circuit for maximising the recorded sound.

Placement of both VCRs: a practical stand from Bang & Olufsen organised your video system into a complete remote-controlled centre which could easily and discreetly be placed in your viewing room.

Finish: metal grey

BeoCord VHS80 Product Details

Type Numbers

4461 (1984 - Nov 1984)
4462 (GB) (1984 - April 1985)
4463 (Oscar) (1984 - May 1985)

Designer

Please let us know

Manufactured

1984 - 1985

Colour Options

Metal Grey

BeoCord VHS80 Product Specification

Description: CTV system B/G PAL (4461)
I PAL (4462)
B/G PAL S-tuner (4463)
Remote control Built in, infra-red
Cassette format VHS
Max. playing time 4 hours, E-240
Fast forward and rewind Nom. 6 min. E-240
Still picture Max. 6 minutes
Step advance 1 frame
Search forward 4 x normal speed
Search rewind 4 x normal speed
Counter Electronic, 4 digits
TV channels UHF 21-69
Play channel UHF 37 (adjustable 30-39)
Aerial impedance 75 ohms coaxial
Number of TV programmes 39
Time programming 5 programmes, + 1 daily + 1 weekly
Number of days 14

Power supply
220V (4461)
220V (4462)
240V (4463)

Placement, min. height
22 cm
Ambient temperature +10/+35 degrees
Relative humidity 30-80%
Dimensions W x H x D 48 x 12 x 37.5 cm
Weight 12 kg

Connections: A/V, audio/video socket 6-pin DIN
RF IN 75 ohms
RF OUT 75 ohms
