Overview

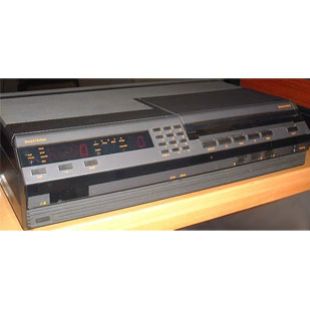

To the unwary, this machine looked remarkably similar to the Video 2000 machines which preceded it. But as the name suggested, it was a VHS machine though supplied by Grundig again. Not sold in the UK.

Product Details

Software

No software information available.

Product Specification

Mains voltage 220 – 240 V +/- 10%
Frequency 48 – 62 Hz
Power consumption in ON 30 W
Power consumption in STANDBY 10 W
Ambient temperature + 10 to +35° C
Relative humidity 30 – 80 %

Wind/rewind time: 46 dB (CCIR 421 – 2 annex)
Resolving power > 3.1 MHz (- 26 dB)

Audio:
Frequency response 40 – 10,000 Hz +/- 8 dB
Wow and flutter < 0.4 % (DIN45507)
Distortion 45 dB (DIN45500)

Tuner:
Band I 48.25 – 105.25 MHz (Ch. E2 – S1)
Band III 112.25 – 294.25 MHz (Ch. S2 – S20)
Band IV/V 471.25 – 855.25 MHz (Ch. E21 – E69)

Modulator:
Adjustable modulation Channel 30 – 40 (543 – 623 MHz
Output voltage 3 mV (RMS) +/- 3 dB

Connections: 21-pin A/V
Audio DIN connector
