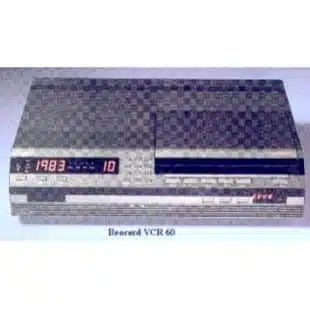

BeoCord VCR60

The next stage in B&O’s foray into the V2000 technology, this machine was based on a Grundig machine and was not sold in the UK.

BeoCord VCR60 Product Details

Type Numbers

4451 (1983 - Jan 1985)
4454 (F) (1983 - Jan 1985)
4453 (Oscar) (1983 - Jan 1985)

Designer

Please let us know

Manufactured

1983 - 1985

Colour Options

Please let us know​

BeoCord VCR60 Product Specification

Power consumption in ON 45W
Power consumption in STANDBY 10W
Ambient temperature +10 to + 35 degrees
Relative humidity 30 – 80 %
Maximum playing time 2 x 4 hours with VCC 480
Wind/rewind time <160 sec. with VCC 480
Dimensions 43.8 x 27.4 x 11.7cm
Weight: 8 kg Position of normal end use horizontal: max. 15°
Number of programmes 35 + AV
Number of pre-programmable blocks 5
Maximum period for pre-programming 31 days or every day

Adjustable modulation frequency
Channel 30 – 40 (560-640 MHz)
Output voltage 3 mV (RMS) +/- 3 dB

Connections: A/V socket 21-pin SCART
AUDIO socket 6-pin DIN
RF IN 75 ohms
RF OUT 75 ohms

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoCord VCR60 FAQs

Please let us know
