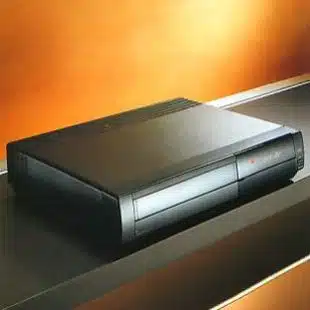

BeoCord V3000

Beocord V3000 was designed to match Beovision LS5500 in looks and budget in order to allow video programming directly on-screen. It permitted eight programmes to be recorded up to one year in advance and had a superb quality slow motion and freeze facility. It also had twin speed recording and playback.

With the assistance of the Beolink 1000 remote control terminal you could handle complicated programming of the video recorder in the easiest possible way – direct via a menu on the TV screen. Beocord V3000 also had Bang & Olufsen’s uniquely fast access to taping any programme you were watching at that moment.

Press RECORD twice on the Beolink 1000 terminal and the VCR would automatically find the right channel in its memory and commence recording your TV programme. It was a fast mover too, having two winding speeds in both directions for picture search. Four video heads ensured that you obtained still pictures and slow motion in choice quality. Sound quality was in mono.

BeoCord V3000 Product Details

Type Numbers

4522 (GB) (1992 - April 1994)
4520 (NEU) (1992 - April 1994)

Designer

Manufactured

1992 - 1994

Colour Options

Black

BeoCord V3000 Product Specification

Specifications: Cassette format VHS
Colour system B/G PAL (4520)
I PAL (4522)
Cabinet finish Black painted metal

TV channels
VHF channels 2-12, CH 01 – CH 12
VHF channels A – H, CH 13 – CH 20
UHF channels 21 – 69, CH 21 – CH 70
S 1 – S 20, CH: 01 – CH 22
U 1 – U 5, CH: 42 – CH: 46
Number of TV programmes 69 (4520)
100 (4522)
Play channel UHF 37, 599 MHz (UHF 34-42)

Video max. playing time
SP, 4 hours, E-240

Fast forward and rewind Approx. 6 min. E180
Counter Linear time
Slow motion video 1/6 x normal speed
Still picture video Noiseless
Search forward/backward 5 x and 9 x normal speed (not in LP mode)
Recording/playback system HQ
Tape heads 2 LP video, 2 SP video
Signal-to-noise ratio, video > 43 dB
Sound Mono
Frequency range 70 – 12,000 Hz
Time programming VCR tuner 8 programmes up to a year

Power supply
Type 4520 220 volts/50 Hz
Type 4522 240 volts
Power consumption 26 watts
Dimensions W x H x D 37 x 8.6 x 32.8 cm
Weight 5.6 kg

Connections: AV socket 21-pin for Beovision
RF input socket 75 ohms
RF output socket 75 ohms
Camera pause socket Mini jack (2.5 mm)
