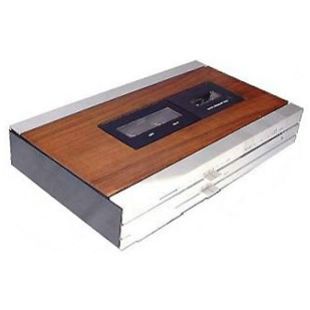

BeoCord 900

Beocord 900 was the simplest of Bang & Olufsen’s range of cassette-recorders.

Your only task was to choose the type of tape to put in: Cr02 or normal. Beocord 900 had large easy-to-read VU meters and recording controls were separate for left and right channels. There was a socket for a microphone and a push-button for mono recordings.

Tape-heads were made of Super Permalloy, a hard and extremely durable material which ensures a long useful lifetime. Wow and flutter was less than 0.28% (JIS method). Signal-to-noise ratio was better than 50 dB with chromium dioxide tapes.

BeoCord 900 Product Details

Type Numbers

2608 (1973 - Aug 1975)

Designer

Manufactured

1973 - 1975

Colour Options

Teak, Rosewood, White

BeoCord 900 Product Specification

Tape system C60 – C90
Tape type: low noise
Chromdioxid
Tone head Super permalloy
VU metre 2 VU metre
Microphone Mono
Wow and flutter < +/- 0.28 %

Speed deviation < +/- 1.5 %
Fast forward and rewind 90 sec

Frequency range 40 – 12,500 Hz
Signal-to-noise ratio > 50 dB
Erasure > 60 dB
Erasure frequency 70 kHz
Radio input 6-100 mV / 47 kohms
Microphone input 75 – 1000 µV / 1 kohm
Radio output 800 mV / 11 kohms
Dimensions H x W x D: 8.5 x 40 x 24cm
