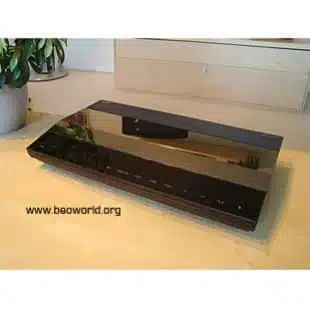

BeoCord 4500

Beocord 4500 cassette recorder housed exciting details and distinguished technology. Like Auto Reverse, so you did not need to turn over the tape. Automatic registration of the type of tape, and Bang & Olufsen’s patented HX-PRO recording system that provided optimal sound reproduction. Both in design and technology, Beocord 4500 was a direct extension of Beomaster 4500.

The cassette recorder featured Bang & Olufsen’s own HX-PRO recording system which ensures that recordings are made as perfectly as possible. With the Beolink 1000 terminal or by lightly touching the panel itself, you could select a particular piece of music you wanted to hear. The search system found it automatically whether it was on Side 1 or Side 2 of the cassette. For Beocord 4500 had Auto Reverse so you did not have to turn the tape over.

The recorder was also equipped with Dolby B and knew exactly what type of tape you were using. Beocord 4500 could be used as part of the Beosystem 4500 hi-fi system.

BeoCord 4500 Product Details

Type Numbers

4961 (1988 - Feb 1994)
4965 (AUS) (1988 - Feb 1994)
4962 (GB) (1988 - May 1993)
4964 (J) (1988 - Feb 1993)
4963 (USA) (1988 - Aug 1993)

Manufactured

1988 - 1993

Colour Options

White, aluminium, black

BeoCord 4500 Product Specification

Compact cassette: C46-C60-C90-C120
Recording system: HX PRO
Direct operation: Sensi touch
Tape transport system: Auto reverse
Search system: Track numbers
Noise reduction system: Dolby B NR
Tape switch: Auto. ferro/chrom/metal
Tape head: Sendust

Wow and flutter DIN: <+/- 0.15%
Fast forward and rewind: C60 75 sec.
Frequency range chrome: 30 – 18,000 Hz +/- 3 dB

Signal-to-noise ratio CCIR/ARM:
Metal Dolby B NR: >64 dB
Chrome Dolby B NR: >63 dB
Ferro Dolby B NR: >62 dB

Power supply:
4961 220V
4962 240V
4963 120V
4964 100V
4965 240V
Power consumption: 18 W
Dimensions W x H x D: 42 x 7 x 24.5cm
Weight 4.5 kg
Connections: AudioLink
