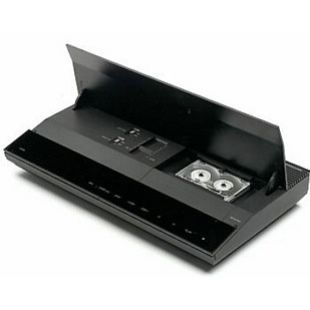

BeoCord 3500

Beocord 3500 was part of Beosystem 3500, a budget-priced system for those who wanted to get onto the Bang & Olufsen bandwagon but could not afford, or did not want to have, the extra features that say, Beosystem 4500 had to offer.

It included specifications such as Dolby B Noise Reduction and a Sendust head for longer life of the recording/playback head, otherwise the features were identical to the Beocord 4500. Its only difference was the grey finish instead of its more expensive brother’s polished surfaces.




BeoCord 3500 Product Details

Type Numbers

4966 (1990 - March 1994)
4967 (GB) (1990 - Feb 1993)
4968 (USA) (1990 - March 1991)

Designer

Please let us know

Manufactured

1989 - 1993

Colour Options

Grey, Black

BeoCord 3500 Product Specification

Compact cassette: C46-C60-C90-C120
Recording system: HX PRO
Direct operation: Sensi touch
Tape transport system: Auto reverse
Search system: Track numbers
Noise reduction system: Dolby B NR
Tape switch: Auto ferro/chrom/metal
Tape head: Sendust

Wow and flutter DIN: <+/- 0.15%
Fast forward and rewind: C60 75 sec
Frequency range chrome: 30 – 18,000 Hz +/- 3 dB

Signal-to-noise ratio CCIR/ARM:
Metal Dolby B NR: >64 dB
Chrome Dolby B NR: >63 dB
Ferro Dolby B NR: >62 dB

Power supply:
4961 220V
4962 240V
4963 120V
4964 100V
4965 240V
Power consumption: 18 W
Dimensions W x H x D: 42 x 7 x 24.5cm
Weight: 4.5 kg

Connections: AudioLink

Gold or Silver membership required to view documents

Available documents are listed, if none are listed then please reach out to see if we have them.

BeoCord 3500 FAQs

Please let us know
