Overview

Beocord 1900 equalled Bang & Olufsen’s top-of-the-line cassette deck (Beocord 5000) in terms of specifications and performance, but it but it did not have the same wide range of facilities and operational refinements.

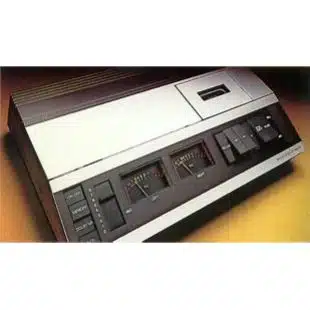

This does not mean that the Beocord 1900 was difficult to operate. On the contrary, the slanting front panel which contained all the operational facilities made the set’s controls handy and easily accessible. The cassette eject mechanism was air damped so that delivery was gentle and controlled. Two large VU meters enabled accurate setting of recording levels.

The microphones socket was placed discreetly under a sliding panel together with a balance control which enabled signal level adjustment in both channels. All the features which characterised high quality and high performance levels in cassette decks were incorporated. These included a combined recording/play-back Sendust tape head and Dolby B Noise Reduction circuits.

Beocord 1900 used precision techniques that ensured stable tape drive and the highest standards of recording and playback. Yet despite its comprehensive facilities it was easy to use and harmonised comfortably with many different Beosystems.

Beocord 1900 could be made up as part of the Beosystem 1900 or Beosystem2400, when linked together with other compatible Bang & Olufsen products.

Product Details

Type Number:2643, 2646,2644
Release Date:1978, 1979, 1980, 1981
Designer:Jacob Jensen
Colour / Finish:Oak, Rosewood, Teak, White

Product Specification

Compact cassette: C60-C90
Wow and flutter, DIN: < +/- 0.15%
Speed deviation: 56 dB
With Dolby Chrome: > 64 dB

Power supply:
2643 220V
2644 110V
2646 240V

Power consumption: 25 W
Dimensions W x H x D: 40 x 8 x 25cm
Weight 5 kg

Connections: AUX
Microphone 0.175 mV / 2.2 kohms

Downloads

    Type

Language

Type

Date

    Type

Service Manual

EN

2643

10-78

BeoCord 1900 Service Manual
