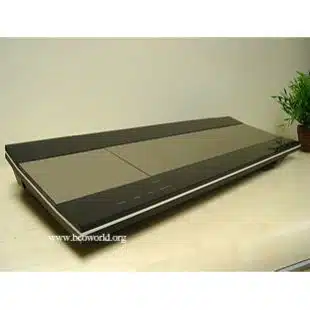

Beocenter 9300 really defined the word ‘classic’. It was for those who preferred to enjoy the music rather than to pore over the product manual. The design of the 9300 was around for many years before production ceased in the late 1990’s. It was available in many different versions; for example 8000, 9000, 9500 and the this last version: Beocenter 9300.
The differences between the 9500 and the 9300 was that the 9300 had a new and improved CD mechanism fitted which was faster than the previous versions. Some minor differences were that the 9300 lacked two-way remote communication and an equalizer loop-through. However, the 9300 still is still among the Bang & Olufsen greats!
BeoCenter 9300 could operate with active as well as passive loudspeakers. A mere touch activated BeoCenter 9300 and a line of sensi-touch options glowed on the lower glass display. The 9300 was a complete music system for people who prefer to enjoy music rather than poring over a product manual.
2 x 80 watt amplifier, CD player with programming, tape recorder with auto reverse, FM/AM radio with 30 preset stations, finger touch control, optional Beo4 remote control operation, connections for Beolink® and headphones, Master Control Link. There was also the option of using the BeoCenter with or without active speakers, such as BeoLab 4000 (shown above). A stand could also be bought as a separate item
Compact disc: built-in
Disc size 12 cm, 8 cm
Frequency range 20 – 20,000 Hz, +/- 1 dB
Signal-to-noise ratio Typical 101 dB, A weighted
D/A converting Bitstream, Analogue filtration
Features: Edit
Dimensions W x H x D 76 x 11 x 34
Weight 14 kg
Cabinet finish: Aluminium
Tuner: built-in
Pre-tuned radio programmes: 30 FM or AM
Radio ranges: FM-LW-MW
Tape Recorder: built-in
Recording system: HX PRO
Tape transport: Auto reverse
Noise reduction: Yes
Frequency range: 50 – 14,000 Hz
Signal-to-noise ratio: > 65 dB, Noise reduction, chrome
Power amplifier: built-in
System frequency range 20 – 20,000 Hz
Long-term max. output 2 x 80 W/ 8 ohms
Harmonic distortion < 0.1 %, 30 W
Power consumption Typical 25 watts/standby <2 watts
Type no. 2516 EU 230 V
2517 GB 240 V
2518 US-CND 120 V
2519 J 100 V
2520 AUS 240 V
2553 TWN 120 V
2554 KOR 120 V
Connections: Power Link 2
TV/AUX 1
FM aerial, 75 ohms 1
AM aerial (Dedicated) 1
Speaker Link 2
Master Control Link (MCL) 1
Tape 2 / Phone 1
Headphone / Jack 1Beolink
Master Control Link
Master Link (via Beolink Converter)
Remote Control: Beo4
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | |
Product Information | EN | BeoCenter 9300 Product Information | |
Reference Guide | DK | BeoCenter 9300 Reference Guide | |
Reference Guide | ES | BeoCenter 9300 Reference Guide | |
Reference Guide | Fin | BeoCenter 9300 Reference Guide | |
Reference Guide | DE | BeoCenter 9300 Reference Guide | |
Reference Guide | IT | BeoCenter 9300 Reference Guide | |
Reference Guide | NL | BeoCenter 9300 Reference Guide | |
Reference Guide | Swe | BeoCenter 9300 Reference Guide | |
Setup Guide | EN | BeoCenter 9300 Reference Guide | |
Setup Guide | DE | BeoCenter 9300 Reference Guide | |
User Guide | DK | BeoCenter 9300 Reference Guide | |
User Guide | EN | BeoCenter 9300 Reference Guide | |
User Guide | Fin | BeoCenter 9300 Reference Guide | |
User Guide | DE | BeoCenter 9300 Reference Guide | |
User Guide | IT | BeoCenter 9300 Reference Guide | |
User Guide | NL | BeoCenter 9300 Reference Guide | |
User Guide | Swe | BeoCenter 9300 Reference Guide | |
User Guide | FR | BeoCenter 9300 Reference Guide | |
Technical Introduction | EN | BeoCenter 9300 Technical Introduction | |
Door Cord | Multi | BeoCenter 9300 Door Cord | |
CD PRO from SN#13289412 | Multi | BeoCenter 9300 CD PRO | |
Service Manual | EN | BeoCenter 9300 Service Maual |
This usually happens if you have replaced the S/W or the lithium battery has been replaced or needs replacing.
Fix the battery or RAM and then:
