An original that defied comparison

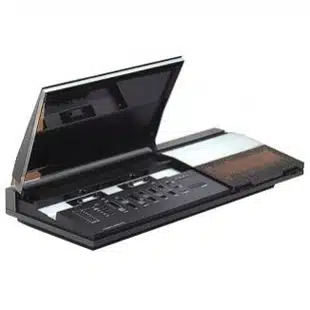

Beocenter 4000 had two cassette decks and a tuner/amplifier and was described as the ‘ultimate machine for tape professionals – and for the true enthusiasts’ upon its release.
The recording deck was equipped with both the Bang & Olufsen HX-Pro recording system and Dolby B Noise Reduction circuitry to give the finest possible recording quality. You could mix sound from the Beocenter 4000’s FM, Medium and Long Wave tuner/amplifier. And even do a DJ talk-over with a microphone. Auto-reverse turned the tape direction automatically giving up to 2 hours (C120) recording time or 3 hours continuously in playback using both decks. You also had an entire evening’s entertainment at your fingertips because you could repeat both sides of Tape 1 and one side of Tape 2.
The FM, Medium and Long Wave tuner/amplifier of Beocenter 4000 had all the features of Beocenters 2200 and 2100 – including presets for 4 stations and sockets for an impressively wide range of connections.
Amplifier:
Power output RMS DIN/IEC 2 x 25 watts / 4 ohms
2 x 20 watts / 8 ohms
Harmonic distortion < 0.2 %
Intermodulation < 0.4 %
Frequency range 1.5 dB 20 – 20,000 Hz
Signal-to-noise ratio > 78 dB
Channel separation 1000 kHz > 50 dB
Tuner:
FM frequency range 87.5 – 108 MHz
LW frequency range 147 – 350 kHz
MW frequency range 520 – 1610 kHz
Tape deck:
Compact cassette C46 – C60 – C90 – C120
Wow and flutter < +/- 0.2 %
Freuqency range 30 – 15,000 Hz
Signal-to-noise ratio CCIR/ARM
Metal Dolby NR > 67 dB TDK-MA
Chrome Dolby NR > 65 dB TDK-SA
Ferro Dolby NR > 63 dB BASF LH I
Metal > 59 dB
Chrome > 57 dB
Power supply:
2431: 220 V
2432: 240 V
2435: 240 V
2439: 220 V
Power consumption 25 – 140 W
Dimensions W x H x D: 64 x 9.5 x 33cm
Weight 10 kg
Connections: CD Phono plugs
Phono Phono plugs
AUX Phono plugs
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | |
User Guide | EN | BeoCenter 4000 User Guide | |
Service Manual | EN | BeoCenter 4000 Service Manual | |
Service Manual | EN | BeoCenter 4000 Service Manual |
