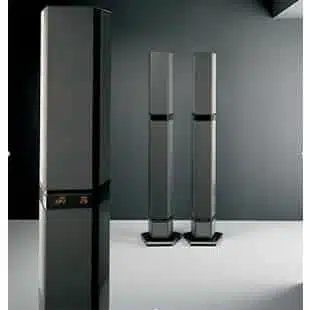

These tall and elegant speakers were developed according to a totally new acoustic principle. They sounded just as magnificent as they looked. Because there were no parallel surfaces in the pentagonal cabinet, the design reduced the internal standing waves and reflection; it was a simple and beautifully effective way of eliminating distortion. The cabinet provided the ideal conditions for the loudspeakers. It was an acoustically ‘dead’ construction, with a moulded inner cabinet surrounded by a stainless steel exterior. Whatever the dimensions of your room, and regardless of the furnishings, BeoLab Penta always sounded wonderful. It also needed very little floor space; head room was all that’s required!
BeoLab Penta was the top-of-the-line speaker from Bang & Olufsen. It was around from the late ‘eighties to the mid-1990s and was upgraded several times. The last version of the active Penta was the Penta 3. In the late 1980’s – when the Penta range was introduced – there was also a passive version, Beovox Penta. But since Bang & Olufsen decided in the 1990s just to concentrate on active speakers, these and some other models, such as the Beovox 4500 and most of the RedLine speakers, were discontinued.
Did you know that the display in Penta I and Penta II was orange and and on Penta III it turned green?
Because you can reduce the size of the cabinet volume to one-third of the size of a conventional loudspeaker with the same sound capacity.
The principle is called Active Loudspeakers, and what you get is a compact loudspeaker that can play at high volume without distortion or damage to its drive units. Furthermore, when amplifier, treble and bass units are paired for the same task, they can be tailored to compensate for each other’s shortcomings. What you hear is music that sounds exactly like the instrument it originally came from.
BeoLab Penta had nine individual loudspeaker units that were accurately positioned in a vertical line to produce a sound dispersion which was so precise that reflections from the floor and ceiling were eliminated. Consequently, Penta speakers could be placed almost anywhere in a room, irrespective of its size or furnishings. The operating panel at the base of BeoLab Penta allowed for the fine tuning of the bass reproduction at three levels.
The speaker’s cross section was a pentagon. The benefit of this design was that it cannot house standing waves which normally are a problem in speakers. The choice of using polished stainless steel was made to help the speaker blend into its surroundings by reflecting them. This gave the speaker the same colour as the surroundings which helped to make the speaker more of a subtle fixture,
The location of the speakers within the column was carefully planned to control the sound waves so that they weren’t reflected by the floor and ceiling. The resulting sound quality simply beggared description.
At the base of BeoLab Penta was the BeoLab 150 amplifier with a power output of 175 watts DIN/IEC. This could give your music a tremendous boost, both to the quality and the actual power output. It was ideal if you love partying but had a relatively small music system. Big power needs careful control – so the amplifier was equipped with Dynamic Soft Clipping system. When there was any overloading, the system softly rounded off the sound; distortion becoming a thing of the past.
Top quality music systems need the best speakers available – or you’re missing out. BeoLab Penta was the natural partner for Bang & Olufsen’s Beosystem 5000 and Beocenter 9000, with their built in CD players. The laser-pure quality of compact disc makes heavy demands on speakers, and both these systems had extremely fine amplifiers. Using BeoLab Penta with these systems and you’d enjoy some of the best sounds in the world. You’d also appreciate handy features such as the light display at the base of the column, which indicated which music source was being used. Of course this was even more useful if you installed Beolink® to give you music all over the house.
RMS power handling capacity 150 watts
Music power handling capacity 200 watts
Frequency range +4 -8 dB 40 – 20,000 Hz
Power at 96 dB SPL 2.5 watts
Sensitivity 92 dB
Distortion 250 – 1000 Hz <0.5%
Distortion >1000 Hz <0.5%
Cabinet principle: Bass reflex
Woofer
4 units 13 cm
Mid-range 4 units 8 cm
Tweeter 2.5
Net cabinet volume: 32 litres
Power amplifier:
Bass level switch Linear, +3 dB/40 Hz, +6 dB/40 Hz
Sensitivity 3 dB, -3 dB, -6 dB
Power supply
6601 : 220V
6602/6605 : 240V
6603 : 120V
6604 : 100V
Power frequency 50-60 Hz
Power consumption Max 300 W
Stand-by 2 W
Dimensions W x H x D
5-13.5 x 165 cm incl. stand
Weight 24 kg
Connections: Line Phono plugs
Power input 4-pin DIN spring loaded contacts
Long-term maximum power IEC 320 watts
Maximum noise power IEC 150 watts
Impedance
8 ohms
Frequency range +4/-8 dB
40 – 20,000 Hz
Power at 96 dB SPL (1m)
2.5 watts
Sensitivity 1 W (1m) 92 dB
Distortion 0.250 – 6 kHz <0.5%
Cabinet principle: Bass Reflex
Woofer: 4 units 13 cm
Mid-range: 4 units 8 cm
Tweeter: 2.5 cm
Net cabinet volume:32 litres
Power amplifier:
Long-term maximum power IEC 300 watts
RMS DIN 175 watts
IHF 150 watts
Total harmonic distortion IHF <0.015%
Intermodulation IHF <0.02%
Dynamic headroom >1.5 dB
BASS EXTENSION switch
0 dB, + 3 dB, + 6 dB
INPUT LEVEL switch 0 dB, -3 dB, – 6 dB
Dynamic Clipping Attenuator Automatic
Power consumption
Max. 300 W
Stand-by 2 W
Dimensions W x H x D
22 x 165 x 20.5cm
Dimensions, stand 35.5 x 4 x 34 cm
Weight 24 kg
Connections: Power Link
Speaker Link
Dimensions W x H x D/Weight: 22 x 165 x 34cm / 12kg
Cabinet finish: Stainless steel
Power consumption
Typical 24 watts/stand-by < 2.5 watts
Mains 6630 KOR 120V
6631 EU 230V
6632 GB 230V
6633 USA-CDN 120V
6634 J 100V
6635 AUS 240V
Maximum sound pressure level (stereo, pair)
103 dB
Power amplifier modules 1 unit
Long-term maximum output power per module* 281 watts
Effective frequency range* 39 – 20,000 Hz
Cabinet principle Bass Reflex
Magnetic shielded No
Woofer 4 x 13 cm
Midrange 4 x 8 cm
Tweeter 2.5 cm
Net volume 32 litres
Bass equalizer Switch 0 dB, -3 dB, +6 dB
*According to IEC 268-3 and 268-5
Connections: Power Link 2
Phono (line) 1
Speaker Link
Available documents are listed, if none are listed then please reach out to see if we have them.
Type | Language | Type | |
User Guide | EN | BeoLab Penta User Guide | |
User Guide | EN | BeoLab Penta User Guide | |
User Guide | EN | BeoLab Penta User Guide | |
Service Manual | EN | BeoLab Penta Service Manual | |
Service Manual | EN | BeoLab Penta Service Manual | |
Service Manual | EN | BeoLab Penta Service Manual |
