BeoLab 9
After much anticipation, Bang & Olufsen have released the BeoLab 9. This acoustic lens speaker had been expected for some time, and it effectively replaces BeoLab 1 which was discontinued. The design of BeoLab 9 continues B&Oโs move away from elegant though easily imitated column loudspeakers to shorter, rounder forms with larger cabinet volumes and […]
Overview

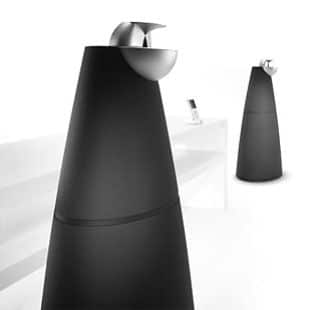

After much anticipation, Bang & Olufsen have released the BeoLab 9. This acoustic lens speaker had been expected for some time, and it effectively replaces BeoLab 1 which was discontinued.
The design of BeoLab 9 continues B&Oโs move away from elegant though easily imitated column loudspeakers to shorter, rounder forms with larger cabinet volumes and better potential for strong bass performance. B&Oโs distinctive acoustic lens is also present, and the speakersโs height means that it is perfectly positioned at ear-level when the listener is seated.
The acoustic lens is cast from zinc and plated with matt chrome. Its prominent position gives the speaker a slightly hunched appearance – but B&O compare it to a lighthouse. The overall proportions are pleasing and there are some very nice details. For example, the power LED is concealed inside the acoustic lens, and the cooling fins/vents at the rear match the curve of the cabinet. The majority of the cabinet is fabric covered – black will probably be the most popular choice here, but it is also available in dark grey, blue and red.
There are three drivers: a 10โ bass unit in an 18 litre enclosure, a 5โ mid-range unit in a 4 litre enclosure and a 0.75โ treble unit in the acoustic lens. All drivers are separately amplified, but there is only oneย ICEpowerย amplifier of 500W which drives the bass unit. The mid-range and treble units each have their own 100W analogue hybrid amplifier.
Product Details
Software
No software information available.
Product Specification
Cabinet finish : Black cloth, aluminium
Power consumption 65W (IEC60065)
25W typical 50cm from picture
tube
Woofer 10โณ / 250mm cone
Midrange 5โณ / 125mm cone
Tweeter 3/4โณ / 19mm dome in acoustic lens
Bass equalization ABL (Adaptive Bass Linearization)
Input sensitivity (Power Link) 125mV @ 91dB SPL
Input sensitivity (line) 125mV @ 91dB SPL
Switch off time (line) Automatic on /off (up to 3min)
Indicator On/Off LED placed in the acoustic lens
Operation Switch for Free standing โ Against wall โ In corner
Switch for Left โ Right โ Line (via PL plug)
Protection Thermal protection of all drivers.
ABL system protects the bass unit against mechanical damage.
Power supply Automatic voltage adaptation 100-120Vac or
190-240Vac
Downloads
Type | Language | Type | |
Review | DE | BeoLab 9 Stereoplay Review | |
User Guide | EN | BeoLab 9 User Guide | |
Setup Guide | NL | BeoLab 9 Setup Guide | |
Service Manual | EN | BeoLab 9 Service Manual | |
Service Manual | DK | BeoLab 9 Service Manual |
